Using the xtractomatic R package to track Pacific Blue Marlin¶
The xtractomatic package can be used to subset data from remote servers. From the GitHub README:
xtractomatic is an R package developed to subset and extract satellite and other oceanographic related data from a remote server. The program can extract data for a moving point in time along a user-supplied set of longitude, latitude and time points; in a 3D bounding box; or within a polygon (through time). The xtractomatic functions were originally developed for the marine biology tagging community, to match up environmental data available from satellites (sea-surface temperature, sea-surface chlorophyll, sea-surface height, sea-surface salinity, vector winds) to track data from various tagged animals or shiptracks
There are routines to extract data from a lon, lat, time track (like a drifter or glider trajectory), a 3D bounding box, or within a polygon. For this example let us use the built-in dataset for the tagged blue marlin fish in the Pacific Ocean (Marlintag38606).
library('xtractomatic')
str(Marlintag38606)
'data.frame': 152 obs. of 7 variables:
$ date : Date, format: "2003-04-23" "2003-04-24" ...
$ lon : num 204 204 204 204 204 ...
$ lat : num 19.7 19.8 20.4 20.3 20.3 ...
$ lowLon: num 204 204 204 204 204 ...
$ higLon: num 204 204 204 204 204 ...
$ lowLat: num 19.7 18.8 18.8 18.9 18.9 ...
$ higLat: num 19.7 20.9 21.9 21.7 21.7 ...
This is a “track-like” data set of the tagged marlin with lon, lat, time arrays.
tagData <- Marlintag38606
xpos <- tagData$lon
ypos <- tagData$lat
tpos <- tagData$date
Now we can extract, for example, SeaWiFS chlorophyll 8 day composite(swchla8day) data around the recorded tags to see if the marlin follow areas of high productivity to presumably find food.
Note the that xlen=0.2 and ylen=0.2 is the bounding latitude/longitude box (in decimal degrees) for finding the data around the desired positions
swchl <- xtracto(xpos, ypos, tpos, 'swchla8day', xlen=0.2, ylen=0.2)
str(swchl)
'data.frame': 152 obs. of 11 variables:
$ mean : num 0.073 NaN 0.074 0.0653 0.0403 ...
$ stdev : num NA NA 0.00709 0.00768 0.02278 ...
$ n : int 1 0 16 4 7 9 4 3 0 6 ...
$ satellite date : chr "2003-04-19T00:00:00Z" "2003-04-27T00:00:00Z" "2003-04-27T00:00:00Z" "2003-04-27T00:00:00Z" ...
$ requested lon min: num 204 204 204 204 204 ...
$ requested lon max: num 204 204 204 204 204 ...
$ requested lat min: num 19.6 19.7 20.3 20.2 20.2 ...
$ requested lat max: num 19.8 19.9 20.5 20.4 20.4 ...
$ requested date : num 12165 12166 12172 12173 12174 ...
$ median : num 0.073 NA 0.073 0.0645 0.031 ...
$ mad : num 0 NA 0.00297 0.00741 0.0089 ...
Now we can use the maps and ggplot2 packages to plot the results.
library('ggplot2')
library('maps')
library('mapdata')
# Combine the two data-frames.
alldata <- cbind(tagData, swchl)
# Adjust the longitudes to be (-180, 180).
alldata$lon <- alldata$lon - 360
# R does not have plotting support for NA so we need to a variable for it.
alldata$missing <- is.na(alldata$mean) * 1
# Map limits.
ylim <- c(15, 30)
xlim <- c(-160, -105)
# Get outline data for map.
w <- map_data('worldHires', ylim=ylim, xlim=xlim)
z <- ggplot(alldata, aes(x=lon, y=lat)) +
geom_point(aes(colour=mean, shape=factor(missing)), size=2.0) +
scale_shape_manual(values=c(19, 1))
z + geom_polygon(data=w, aes(x=long, y=lat, group=group), fill='grey80') +
theme_bw() +
scale_colour_gradient(low='#56B1F7', high='#132B43',
limits=c(0.0, 0.32),
expression(paste(Mean~chla~values~(mu~g~l^-1)))) +
coord_fixed(1.3, xlim=xlim, ylim=ylim) +

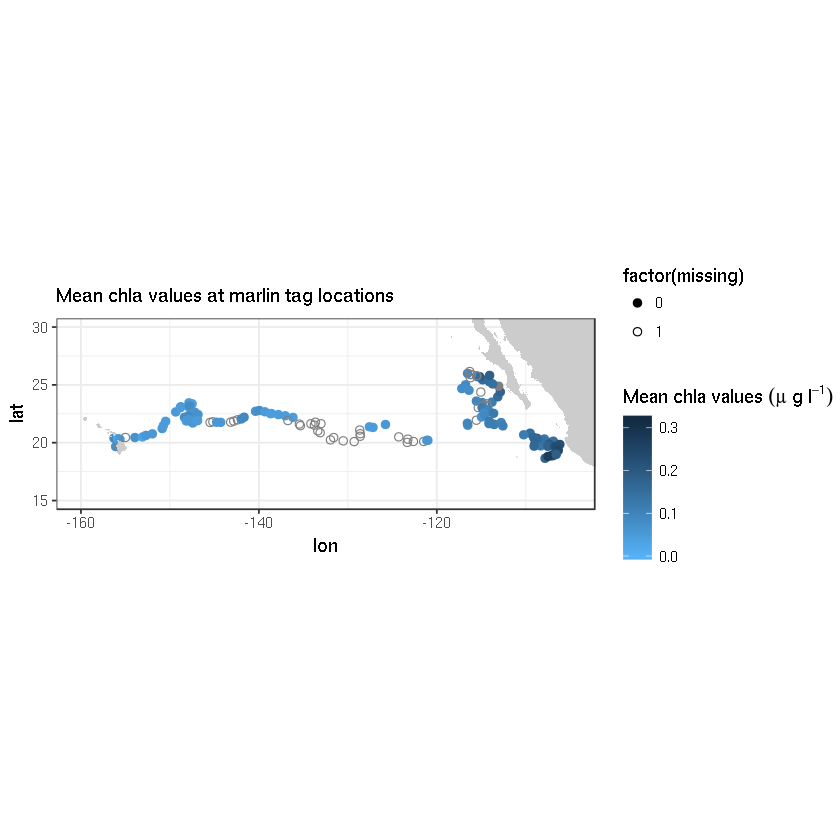

ggtitle('Mean chla values at marlin tag locations')
We can do the same for topography data. Let’s use the ETOPO360 dataset to display the depth at the tag locations.
ylim <- c(15, 30)
xlim <- c(-160, -105)
topo <- xtracto(tagData$lon, tagData$lat, tagData$date, 'ETOPO360', 0.1, 0.1)
ylim <- c(15, 30)
xlim <- c(-160, -105)
alldata <- cbind(tagData, topo)
alldata$lon <- alldata$lon - 360
z <- ggplot(alldata, aes(x=lon, y=lat)) +
geom_point(aes(colour=mean), size=2.0) +
scale_shape_manual(values=c(19, 1))
z + geom_polygon(data=w,
aes(x=long, y=lat, group=group),
fill='grey80') +
theme_bw() +
scale_colour_gradient('Depth (m)') +
coord_fixed(1.3, xlim=xlim, ylim=ylim) +

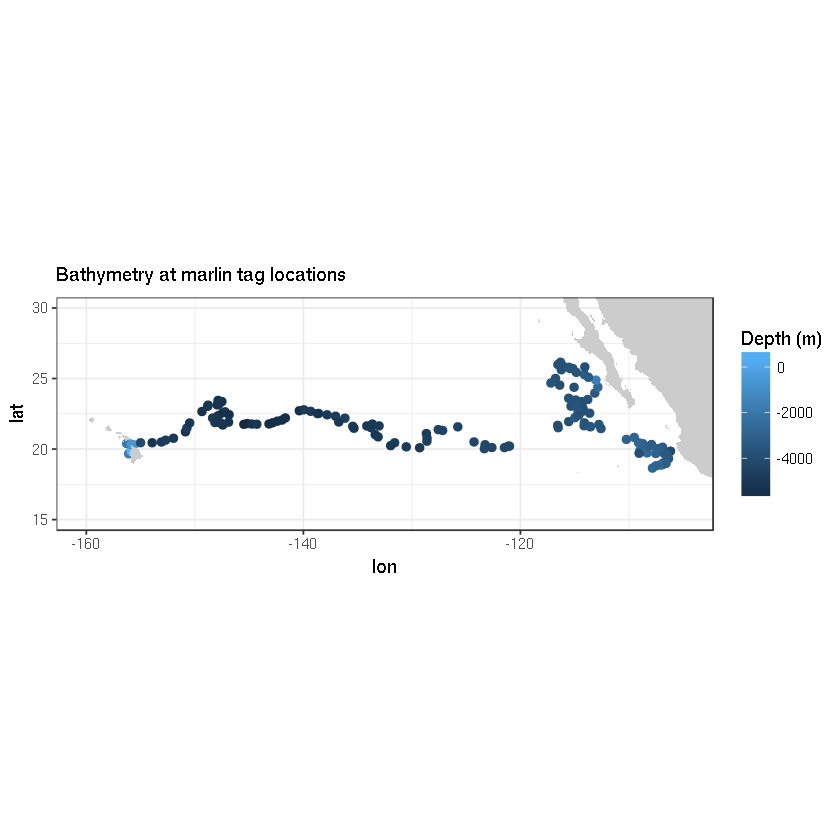

ggtitle('Bathymetry at marlin tag locations')
For more information and example on the other routines see the full example from the documentation at https://cran.r-project.org/web/packages/xtractomatic/vignettes/Usingxtractomatic.html
PS: note that R and all the xtractomatic dependencies are already included in the IOOS conda environment.
