Calling R libraries from Python

In this example we will explore the Coral Reef Evaluation and Monitoring Project (CREMP) data available in the Gulf of Mexico Coastal Ocean Observing System (GCOOS) ERDDAP server.

To access the server we will use the rerddap library and export the data to Python for easier plotting.

The first step is to load the rpy2 extension that will allow us to use the R libraries.

%load_ext rpy2.ipython

The first line below has a %%R to make it an R cell. The code below specify the GCOOS server and fetches the data information for the cremp_fk_v2_1996 dataset.

For more information on rerddap please see https://rmendels.github.io/Using_rerddap.nb.html.

%%R

library('rerddap')

url <- 'http://gcoos4.tamu.edu:8080/erddap/'
data_info <- rerddap::info('cremp_fk_1996_v20', url=url)

data_info

<ERDDAP info> cremp_fk_1996_v20
 Dimensions (range):
 Variables:
     AverageNumberOfPoints:
         Range: 1045, 2625
     basisOfRecord:
     bottomType:
     class:
     country:
     datasetID:
     datasetName:
     depth:
         Range: 3.0, 54.0
         Units: m
     dynamicProperties:
     eventDate:
     eventDateRemarks:
     eventDateTimeZone:
     family:
     firstYear:
         Range: 1996, 1996
     genus:
     geodeticDatum:
     habitat:
     higherInstitutionCode:
     institutionCode:
     kingdom:
     lastYear:
         Range: 2000, 2015
     latitude:
         Range: 24.4517, 25.2953
         Units: degrees_north
     locality:
     longitude:
         Range: -81.9195, -80.2087
         Units: degrees_east
     materialSampleID:
     maximumDepthInMeters:
         Range: 3.0, 54.0
         Units: m
     minimumDepthInMeters:
         Range: 3.0, 54.0
         Units: m
     order:
     ownerInstitutionCode:
     phylum:
     protection:
     quantificationMethod:
     quantificationName:
     quantificationStatus:
     quantificationUnit:
     quantificationValue:
         Range: 0.0, 0.919800885
     recordedBy:
     region:
     sampleAreaInSquareMeters:
         Range: 19.0, 26.0
         Units: m^2
     Samples:
         Range: 0, 11679
     scientificName:
     scientificNameAuthorship:
     scientificNameIDITIS:
         Range: -999, 914166
     scientificNameIDWoRMS:
         Range: -999, 828326
     specificEpithet:
     stateProvince:
     stationNumber:
         Range: 101, 814
     subSampleID:
     taxonRank:
     time:
         Range: 8.204544E8, 8.204544E8
         Units: seconds since 1970-01-01T00:00:00Z
     timeUncertainty:
         Units: sec
     underwaterVisibilityInMeters:
     vernacularName:
     verticalDatum:
     waterBody:
     waterTemperatureInCelsius:
         Units: C

By inspecting the information above we can find the variables available in the dateset and use the tabledap function to download them.

Note that the %%R -o rdf will export the rdf variable back to the Python workspace.

%%R -o rdf

fields <- c(
    'Samples',
    'depth',
    'time',
    'longitude',
    'latitude',
    'scientificName',
    'habitat',
    'genus',
    'quantificationValue'
)

rdf <- tabledap(
    data_info,
    fields=fields,
    url=url
)

Now we need to export the R DataFrame to a pandas objects and ensure that all numeric types are numbers and not strings.

import pandas as pd

from rpy2.robjects import pandas2ri

pandas2ri.activate()
df = pandas2ri.ri2py_dataframe(rdf)

cols = ["longitude", "latitude", "depth", "quantificationValue"]
df[cols] = df[cols].apply(pd.to_numeric)

df.head()
Samples depth time longitude latitude scientificName habitat genus quantificationValue
2 0 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
3 1 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
4 2 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
5 3 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
6 4 9.0 1996-01-01T00:00:00Z -80.3782 25.1201 Acropora cervicornis Hard Bottom Acropora 0.0

We can navigate to ERDDAP’s info page to find the variables description. Let’s check what is quantificationValue:

The is value of the derived information product, such as the numerical value for biomass. This term does not include units. Mean number of observed fish per species for 5 Minutes

We can see that quantificationValue has a lot of zero values, let’s remove that first to plot the data positions only where something was found.

# Filter invalid values (-999).

cremp_1996 = df.loc[df["quantificationValue"] >= 0]
cremp_1996.head()
Samples depth time longitude latitude scientificName habitat genus quantificationValue
2 0 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
3 1 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
4 2 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
5 3 6.0 1996-01-01T00:00:00Z -80.3475 25.1736 Acropora cervicornis Hard Bottom Acropora 0.0
6 4 9.0 1996-01-01T00:00:00Z -80.3782 25.1201 Acropora cervicornis Hard Bottom Acropora 0.0

What is the most common genus of Coral observed?

avg = cremp_1996.groupby("genus").mean()

avg
Samples depth longitude latitude quantificationValue
genus
8010.928571 23.2375 -81.046667 24.768957 0.128788
Acropora 159.500000 23.2375 -81.046667 24.768957 0.005494
Agaricia 479.500000 23.2375 -81.046667 24.768957 0.000003
Cladocora 719.500000 23.2375 -81.046667 24.768958 0.000000
Colpophyllia 879.500000 23.2375 -81.046667 24.768958 0.004462
Dendrogyra 1039.500000 23.2375 -81.046667 24.768958 0.000977
Diadema 10159.500000 23.2375 -81.046667 24.768958 0.000007
Dichocoenia 1199.500000 23.2375 -81.046667 24.768958 0.000509
Diploria 1359.500000 23.2375 -81.046667 24.768958 0.000999
Eusmilia 1519.500000 23.2375 -81.046667 24.768958 0.000091
Favia 1679.500000 23.2375 -81.046667 24.768958 0.000045
Helioseris 1839.500000 23.2375 -81.046667 24.768958 0.000004
Isophyllia 2079.500000 23.2375 -81.046667 24.768957 0.000006
Madracis 2399.500000 23.2375 -81.046667 24.768957 0.000040
Manicina 2639.500000 23.2375 -81.046667 24.768958 0.000007
Meandrina 2799.500000 23.2375 -81.046667 24.768958 0.000363
Millepora 3039.500000 23.2375 -81.046667 24.768957 0.006159
Montastraea 3279.500000 23.2375 -81.046667 24.768958 0.013597
Mussa 3439.500000 23.2375 -81.046667 24.768958 0.000061
Mycetophyllia 3759.500000 23.2375 -81.046667 24.768957 0.000144
Oculina 4159.500000 23.2375 -81.046667 24.768957 0.000046
Orbicella 4399.500000 23.2375 -81.046667 24.768958 0.033860
Other 10319.500000 23.2375 -81.046667 24.768958 0.000161
Porites 4639.500000 23.2375 -81.046667 24.768957 0.003372
Pseudodiploria 4959.500000 23.2375 -81.046667 24.768957 0.001024
Scolymia 5359.500000 23.2375 -81.046667 24.768958 0.000009
Siderastrea 5599.500000 23.2375 -81.046667 24.768957 0.004603
Solenastrea 5919.500000 23.2375 -81.046667 24.768957 0.000048
Stephanocoenia 6159.500000 23.2375 -81.046667 24.768958 0.000263
Undaria 6319.500000 23.2375 -81.046667 24.768958 0.001044

rerddap’s info request does not have enough metadata about the variables to explain the blank, and most abundant, genus. Checking the sever did not help figure that out. We’ll remove that for now to deal with only those that are identified.

cremp_1996 = cremp_1996.loc[cremp_1996["genus"] != ""]

There are also many genus with zero biomass count. In this example we’ll choose to do a biased analysis of occurrence and eliminate those where nothing was observed.

# Filter zero values (nothing was observed).

cremp_1996 = cremp_1996.loc[cremp_1996["quantificationValue"] > 0]

Now we can check the quantificationValue average by genus.

%matplotlib inline

avg = cremp_1996.groupby("genus").mean()  # re-compute the "biased" average.
ax = avg["quantificationValue"].plot(kind="bar")
../../../_images/2017-11-30-rerddap_17_0.png

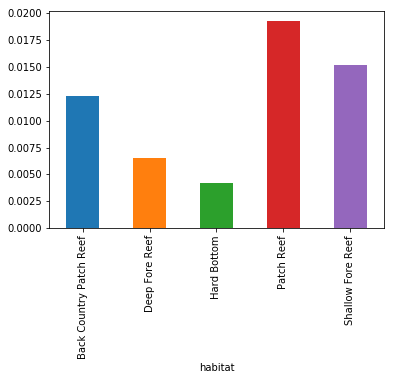

and habitat.

ax = cremp_1996.groupby("habitat").mean()["quantificationValue"].plot(kind="bar")
../../../_images/2017-11-30-rerddap_19_0.png

It seems the most of the biomass was found around the Dendrogyra genus in Patch Reef habitats. But where are those Coral Reefs? How is the distribution of top three species with more biomass around them? With a pandas DataFrame it is easy to group the data by location and count the genus occurrence based on it.

import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt
import numpy as np
from cartopy.mpl.ticker import LatitudeFormatter, LongitudeFormatter


def make_plot():
    bbox = [-82, -80, 24, 26]
    projection = ccrs.PlateCarree()

    fig, ax = plt.subplots(figsize=(9, 9), subplot_kw=dict(projection=projection))

    ax.set_extent(bbox)

    land = cfeature.NaturalEarthFeature(
        "physical", "land", "10m", edgecolor="face", facecolor=[0.85] * 3
    )

    ax.add_feature(land, zorder=0)
    ax.coastlines("10m", zorder=1)

    ax.set_xticks(np.linspace(bbox[0], bbox[1], 3), crs=projection)
    ax.set_yticks(np.linspace(bbox[2], bbox[3], 3), crs=projection)
    lon_formatter = LongitudeFormatter(zero_direction_label=True)
    lat_formatter = LatitudeFormatter()
    ax.xaxis.set_major_formatter(lon_formatter)
    ax.yaxis.set_major_formatter(lat_formatter)
    return fig, ax

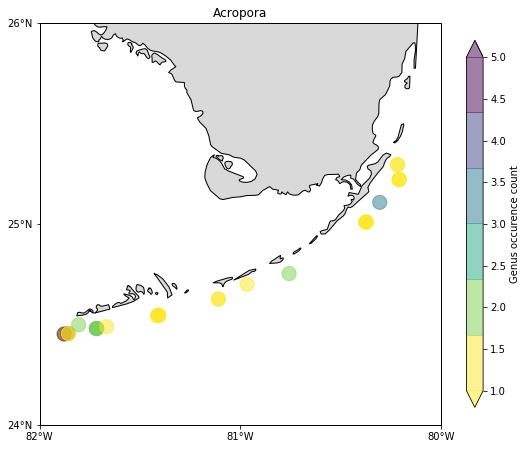

count = (
    cremp_1996.loc[cremp_1996["genus"] == "Acropora"]
    .groupby(["longitude", "latitude"])
    .count()
    .reset_index()
)


fig, ax = make_plot()
c = ax.scatter(
    count["longitude"],
    count["latitude"],
    s=200,
    c=count["genus"],
    alpha=0.5,
    cmap=plt.cm.get_cmap("viridis_r", 6),
    zorder=3,
)
cbar = fig.colorbar(c, shrink=0.75, extend="both")
cbar.ax.set_ylabel("Genus occurrence count")
ax.set_title("Acropora")
../../../_images/2017-11-30-rerddap_22_0.png

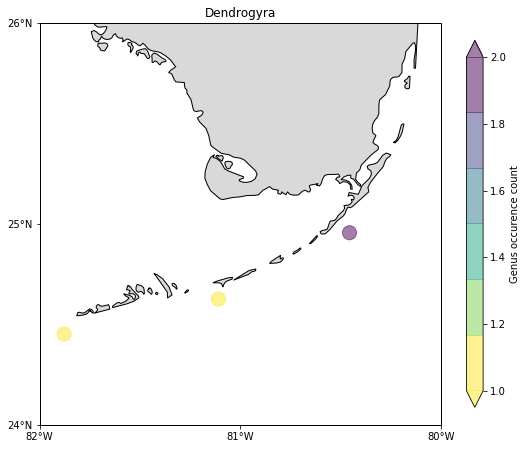

count = (
    cremp_1996.loc[cremp_1996["genus"] == "Dendrogyra"]
    .groupby(["longitude", "latitude"])
    .count()
    .reset_index()
)


fig, ax = make_plot()
c = ax.scatter(
    count["longitude"],
    count["latitude"],
    s=200,
    c=count["genus"],
    alpha=0.5,
    cmap=plt.cm.get_cmap("viridis_r", 6),
    zorder=3,
)
cbar = fig.colorbar(c, shrink=0.75, extend="both")
cbar.ax.set_ylabel("Genus occurrence count")
ax.set_title("Dendrogyra")
../../../_images/2017-11-30-rerddap_23_0.png

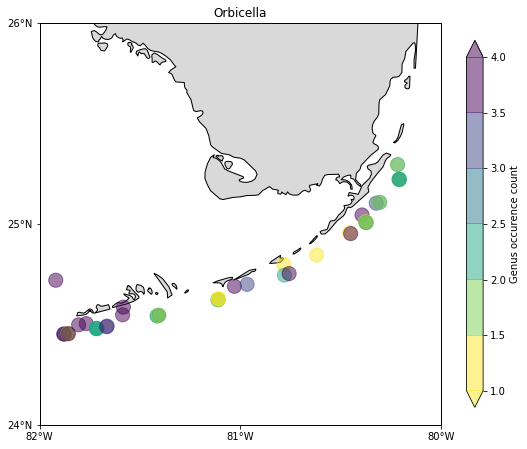

count = (
    cremp_1996.loc[cremp_1996["genus"] == "Orbicella"]
    .groupby(["longitude", "latitude"])
    .count()
    .reset_index()
)


fig, ax = make_plot()
c = ax.scatter(
    count["longitude"],
    count["latitude"],
    s=200,
    c=count["genus"],
    alpha=0.5,
    cmap=plt.cm.get_cmap("viridis_r", 6),
    zorder=3,
)
cbar = fig.colorbar(c, shrink=0.75, extend="both")
cbar.ax.set_ylabel("Genus occurrence count")
ax.set_title("Orbicella")
../../../_images/2017-11-30-rerddap_24_0.png

This demonstration showed the power of mixing Python and R to reduce developer time and allow the research to focus on the data and not the programming language.
