IOOS GTS Statistics¶

The Global Telecommunication System (GTS) is a coordinated effort for rapid distribution of observations. The GTS monthly reports show the number of messages released to GTS for each station. The reports contain the following fields:

location ID: Identifier that station messages are released under to the GTS;
region: Designated IOOS Regional Association (only for IOOS regional report);
sponsor: Organization that owns and maintains the station;
Met: Total number of met messages released to the GTS
Wave: Total number of wave messages released to the GTS

In this notebook we will explore the statistics of the messages IOOS is releasing to GTS.

The first step is to download the data. We will use an ERDDAP server that hosts the CSV files with the ingest data.

from datetime import date

from erddapy import ERDDAP

server = "http://osmc.noaa.gov/erddap"
e = ERDDAP(server=server, protocol="tabledap")

e.dataset_id = "ioos_obs_counts"
e.variables = ["time", "locationID", "region", "sponsor", "met", "wave"]
e.constraints = {
    "time>=": "2019-09",
    "time<": "2020-11",
}

df = e.to_pandas(parse_dates=True)

df["locationID"] = df["locationID"].str.lower()

df.tail()

	time (UTC)	locationID	region	sponsor	met	wave
2366	2020-10-01T00:00:00Z	41029	SECOORA	COASTAL OCEAN RESEARCH AND MONITORING PROGRAM	1150	0
2367	2020-10-01T00:00:00Z	41037	SECOORA	COASTAL OCEAN RESEARCH AND MONITORING PROGRAM	1470	0
2368	2020-10-01T00:00:00Z	41064	SECOORA	COASTAL OCEAN RESEARCH AND MONITORING PROGRAM	1478	0
2369	2020-10-01T00:00:00Z	sipf1	SECOORA	FLORIDA INSTITUTE OF TECHNOLOGY	5704	0
2370	2020-10-01T00:00:00Z	42098	SECOORA	GREATER TAMPA BAY MARINE ADVISORY COUNCIL PORTS	0	2926

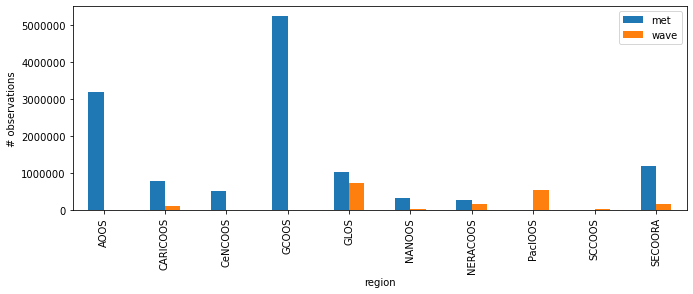

The table has all the ingest data from 2019-01-01 to 2020-06-01. We can now explore it grouping the data by IOOS Regional Association (RA).

groups = df.groupby("region")

ax = groups.sum().plot(kind="bar", figsize=(11, 3.75))
ax.yaxis.get_major_formatter().set_scientific(False)
ax.set_ylabel("# observations");

Let us check the monthly sum of data released both for individuak met and wave and the totdals.

import pandas as pd

df["time (UTC)"] = pd.to_datetime(df["time (UTC)"])
# Remove time-zone info for easier plotting, it is all UTC.
df["time (UTC)"] = df["time (UTC)"].dt.tz_localize(None)

groups = df.groupby(pd.Grouper(key="time (UTC)", freq="M"))

We can create a table of observations per month,

s = groups.sum()
totals = s.assign(total=s["met"] + s["wave"])
totals.index = totals.index.to_period("M")

totals

	met	wave	total
time (UTC)
2019-09	992998	204256	1197254
2019-10	1006928	185542	1192470
2019-11	877344	104654	981998
2019-12	836598	77896	914494
2020-01	803044	80102	883146
2020-02	770202	74524	844726
2020-03	869432	78372	947804
2020-04	877658	95432	973090
2020-05	887088	106754	993842
2020-06	910610	150018	1060628
2020-07	895840	163476	1059316
2020-08	965234	175694	1140928
2020-09	955778	169062	1124840
2020-10	950032	160174	1110206

and visualize it in a bar plot.

%matplotlib inline
import matplotlib.dates as mdates
import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(11, 3.75))

s.plot(ax=ax, kind="bar")
ax.set_xticklabels(
    labels=s.index.to_series().dt.strftime("%Y-%b"),
    rotation=70,
    rotation_mode="anchor",
    ha="right",
)
ax.yaxis.get_major_formatter().set_scientific(False)
ax.set_ylabel("# observations")

Text(0, 0.5, '# observations')

../../../_images/2020-10-10-GTS_10_1.png

Those plots are interesting to understand the RAs role in the GTS ingest and how much data is being released over time. It would be nice to see those per buoy on a map.

For that we need to get the position of the NDBC buoys. Let’s get a table of all the buoys and match with what we have in the GTS data.

import xml.etree.ElementTree as et

import pandas as pd
import requests


def make_ndbc_table():
    url = "https://www.ndbc.noaa.gov/activestations.xml"
    with requests.get(url) as r:
        elems = et.fromstring(r.content)
    df = pd.DataFrame([elem.attrib for elem in list(elems)])
    df["id"] = df["id"].str.lower()
    return df.set_index("id")


buoys = make_ndbc_table()
buoys["lon"] = buoys["lon"].astype(float)
buoys["lat"] = buoys["lat"].astype(float)

buoys.head()

	lat	lon	name	owner	pgm	type	met	currents	waterquality	dart	elev	seq
id
00922	30.0	-90.0	OTN201 - 4800922	Dalhousie University	IOOS Partners	other	n	n	n	n	NaN	NaN
00923	30.0	-90.0	OTN200 - 4800923	Dalhousie University	IOOS Partners	other	n	n	n	n	NaN	NaN
01500	30.0	-90.0	SP031 - 3801500	SCRIPPS	IOOS Partners	other	n	n	n	n	NaN	NaN
01502	30.0	-90.0	Penobscot - 4801502	University of Maine	IOOS Partners	other	n	n	n	n	NaN	NaN
01503	30.0	-90.0	Saul - 4801503	Woods Hole Oceanographic Institution	IOOS Partners	other	n	n	n	n	NaN	NaN

For simplificty we will plot the total of observations per buoys.

groups = df.groupby("locationID")
location_sum = groups.sum()

buoys = buoys.T

extra_cols = pd.DataFrame({k: buoys.get(k) for k, row in location_sum.iterrows()}).T
extra_cols = extra_cols[["lat", "lon", "type", "pgm", "name"]]

map_df = pd.concat([location_sum, extra_cols], axis=1)
map_df = map_df.loc[map_df["met"] + map_df["wave"] > 0]

And now we can overlay an HTML table with the buoy information and ingest data totals.

from ipyleaflet import AwesomeIcon, Marker, Map, LegendControl, FullScreenControl, Popup
from ipywidgets import HTML


m = Map(center=(35, -95), zoom=4)
m.add_control(FullScreenControl())

legend = LegendControl(
    {
        "wave": "#FF0000",
        "met": "#FFA500",
        "both": "#008000"
    },
    name="GTS",
    position="bottomright",
)
m.add_control(legend)


def make_popup(row):
    classes = "table table-striped table-hover table-condensed table-responsive"
    return pd.DataFrame(row[["met", "wave", "type", "name", "pgm"]]).to_html(
        classes=classes
    )

for k, row in map_df.iterrows():
    if (row["met"] + row["wave"]) > 0:
        location = row["lat"], row["lon"]
        if row["met"] == 0:
            color = "red"
        elif row["wave"] == 0:
            color = "orange"
        else:
            color = "green"
        marker = Marker(
            draggable=False,
            icon=AwesomeIcon(name="life-ring", marker_color=color),
            location=location,
        )
        msg = HTML()
        msg.value = make_popup(row)
        marker.popup = msg
        m.add_layer(marker)
m
